Item Description

For purchase and shipment only in North America (USA, Canada, Mexico).  Please contact your local Hamamatsu office in other countries.

Advanced mid-IR LEDs are manufactured by Hamamatsu using unique crystal growth and process technologies. Output is significantly increased from prior products.

These devices feature:

• High output
• High-speed response
• High reliability
• Low power consumption

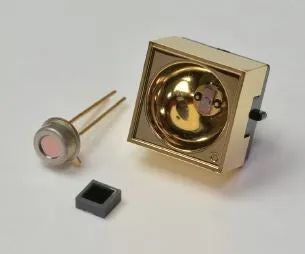

Available packages:

• SMD- Small surface mount type ceramic package - - no window or Si window (very limited quantity available with window).
• TO-46 metal package
• TO-46 with reflector (for light condensing)

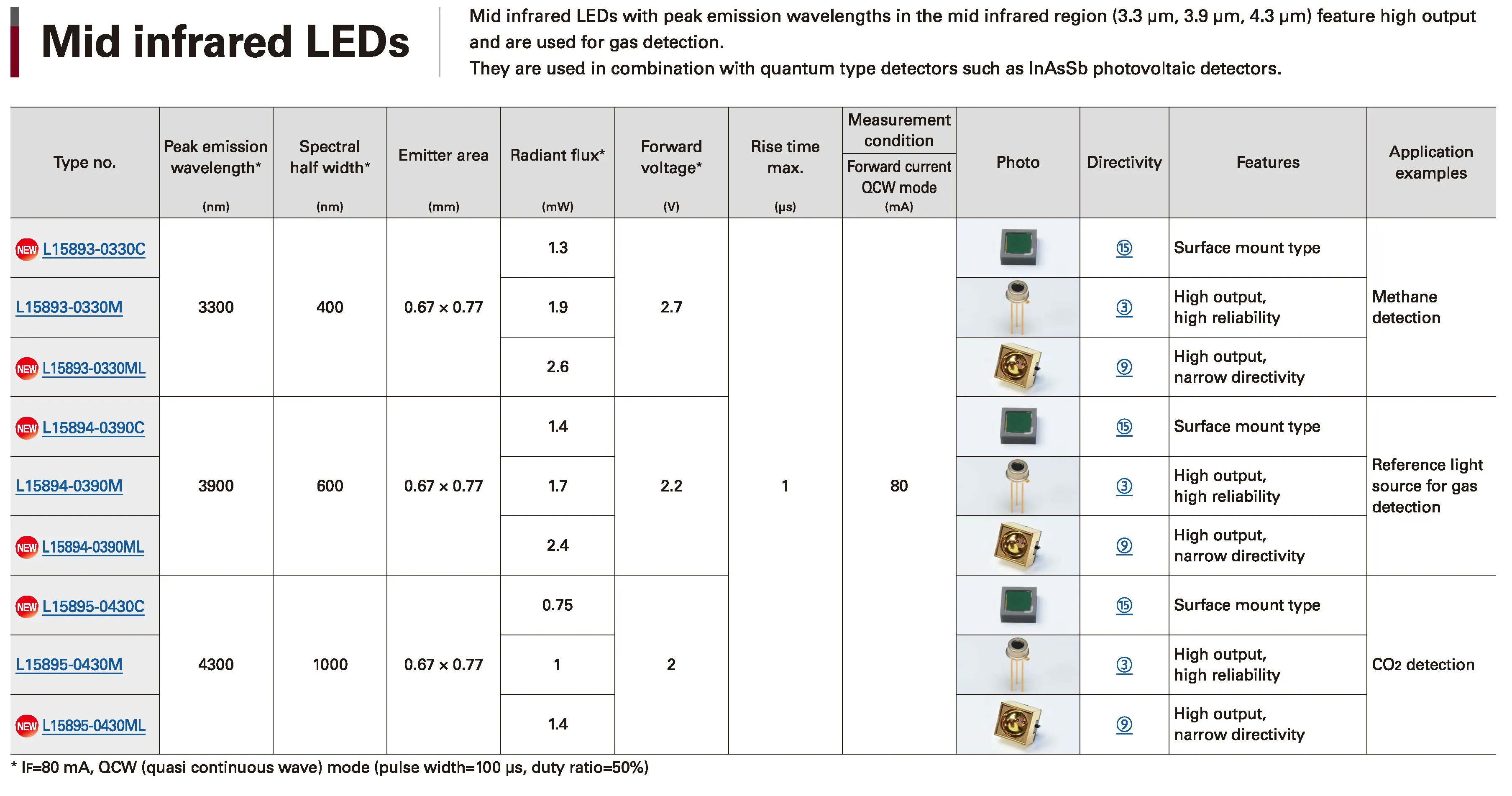

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our  or at 617-566-3821

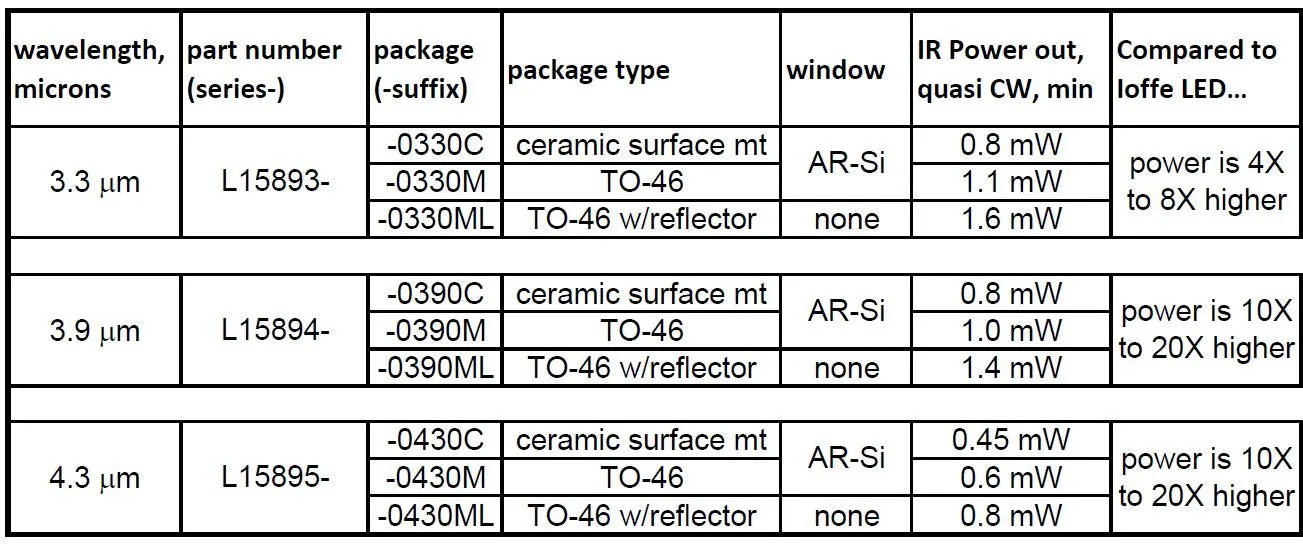

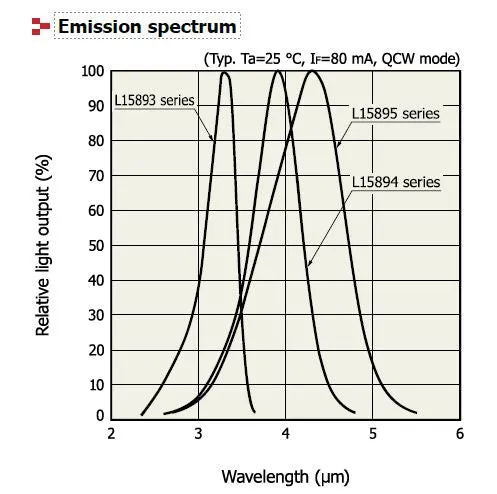

Peak Wavelength	3.9 um
Quasi-CW Power (minimum/typical)	0.8/1.4 mW - SMD 1.0/1.7 mW - TO-46 1.4/2.4 mW -TO-46 w/reflector
